Description
Features
- Available in 1/4HP (KM-60 series) or 1/2HP (KM-120 series)
- No electricity in the water
- No equipment floating on or near surface
- Effective in depths 8’-50’ (2.5M-15M)
- Designed and built for continuous operation
- Low maintenance rocking-piston compressors
- Compressor can be remotely installed — up to 1 mile away (1.6K)
- Safety Tested; compressor ETL listed to UL and CSA Standards, 50Hz models CE marked
- Backed by a two-year warranty
- Ships via UPS
Compressors Include:
- Air filter assembly
- 40 PSI preset pressure relief valve
- Brass outlet air elbow
- 6 ft. power cord
- Vibration mounting feet with nuts and washers
- Ramped valve plates to allow units to start under load
Compressors Specs:

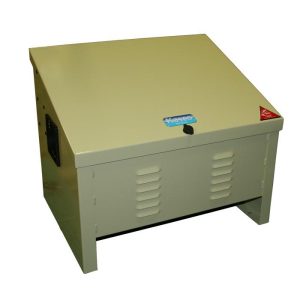

Base Mount Cabinet
- Can operate 1-6 diffusers
- 24 in. x 18 in. 20 in.
- Great choice if compressor can be on the ground with access to ventillation from below
- 120 volt receptacle or a 240 volt junction box
- two cooling fans provide 110 CFM ventilation each
- 6 ft. power cord from cabinet
- Powder-coated aluminum for increased durability
- Compressors are mounted at the factory
- Acoustical foam included in cabinet to reduce noise levels
- Cabinet includes keyed lock
- Nature-green color blends well with outdoor surroundings
- Note: Place on flat surface to allow ventilation from underneath
Post Mount Cabinet
- Can operate 1-3 diffusers
- 19 in. x 12 in. x 12 in.
- Great choice if compressor needs to be off the ground
- 120 volt receptacle or a 240 volt junction box
- Single cooling fan provides 110 CFM of ventilation
- 6 ft. power cord from cabinet
- Power-coated aluminum features increased durability
- Compressor is mounted at the factory
- Acoustical foam included in cabinet to reduce noise levels
- Cabinet includes a keyed lock for added safety
- Nature-green color blends well with outdoor surroundings
- Note: Mount on wall or wooden post (post not included)
No Cabinet Option
- Cooling fan and universal mounting platform included
- Allows for easy compressor maintenance
- 6 ft. power cord from compressor
- Mount brackets allow for easy installation
- Must be protected from weather
- Must still allow for adequate ventilation
- Least cost option
- Note: Great flexibility, used in unique applications
